USB device screen projection connection

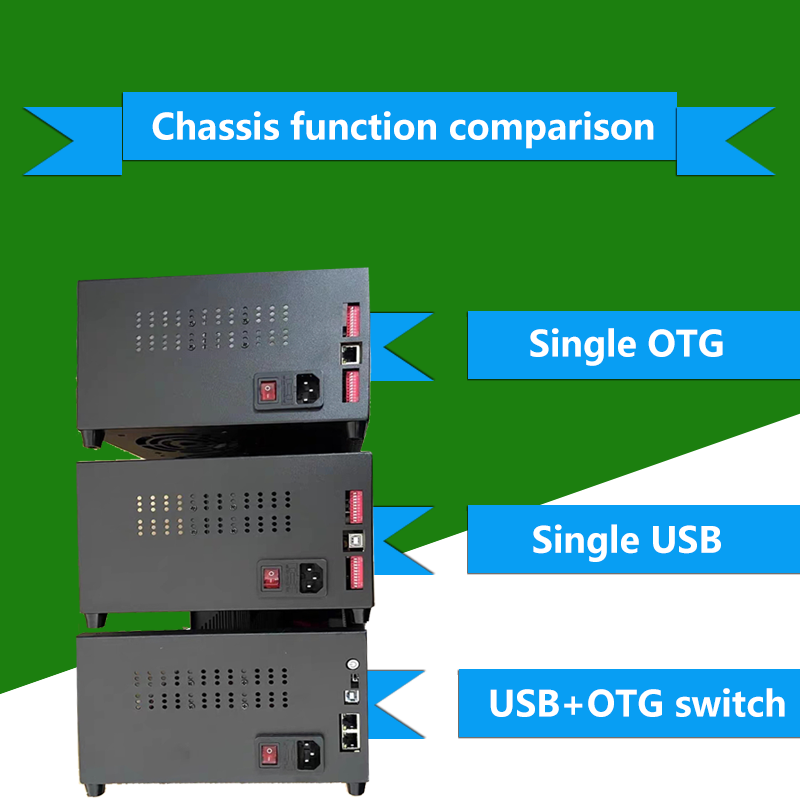

Mobile Farm Box Equipment
The official system box is not free of authorization. Contact your customer service to ask for the ADB identity authorization file.
Download niaozun identity authorization file: https://drive.google.com/file/d/1cWYhcezBa3BPlonKPnPEfzvZGZ8BmqMh/view?usp=sharing Unzip after downloading
Copy these two files to the C:\Users\computer username\android\directory. If this directory does not exist, log in to the screen projection software first.
Then close the group control software and reopen it.
If it is an optimized system box or a root system box, you do not need to perform this step
Then connect the USB box to the USB port of the computer, and you can see the phone screen when you turn it on.
After the mobile phone is successfully connected, the number and status of mobile phone connections will be prompted on the left
LAN OTG device screen projection connection
The first step is to make sure that the computer and mobile phone are connected to the same routing device.
In the second step, the official system box needs to manually open the network adb mirror.

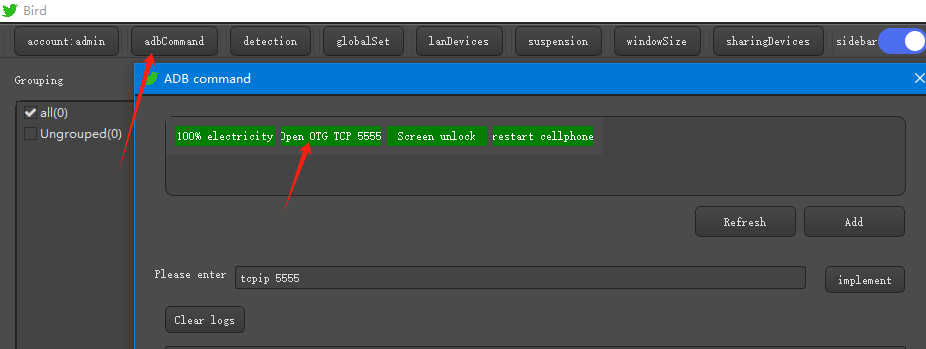

Therefore, the official system requires you to connect the computer to the screen in USB mode, open the group control, select the mobile phone to be turned on, click the Turn on OTG TCP5555 button in the adb shortcut command, and then switch to OTG mode or connect to the WIFI network to scan the LAN IP connection.
The optimized system and root system boxes have network mirroring enabled by default, so you can directly execute step 3
Step 3. Then find the top of the software and click 'Add LAN Device' to open it.
Connection method 1
Add the IP segment of the route. As shown in the figure, the software automatically recognizes the computer network segment as: 192.168.9.1-255. If no modification is required, just click Add.
After that, it will appear in the list display, click scan, if there are multiple network segments, add them multiple times, click one-click scan to ensure that the LANs are interconnected.
Connection method 2
If the device LAN IP is known, you can quickly fill in the device IP for one-click connection, saving scanning time or connecting to a mobile phone separately.
USB device to WiFi connection
After the USB device is connected to WiFi, it can also quickly switch to a LAN connection. However, WiFi interference is relatively serious, so it is not recommended to use too many devices. The specific number depends on the WiFi signal performance of the router. An ordinary router WiFi can project 5-10 screens without any problem, and a high-quality router can project more than 20 screens without any problem. For motherboard devices, when there are few devices, it can be used to deal with disconnection caused by unstable voltage.
Right-click the device number and switch to LAN connection. After clicking, the WiFi screen projection window will appear and the USB connection line can be disconnected.
After the conversion, the wifi logo that appears on the mobile phone screen is the LAN screen projection mode
Equipment status detection
If there is an abnormal device in the group control or the mobile phone does not project the screen after connecting, you can click "Device Detection" at the top to check the connection status information of the mobile phone.
Adjust the size of the projection window
The mobile phone list window can be controlled by the window size ratio bar at the top
Control device switching
Double-click the device title to switch the main control window being controlled.
Synchronous control | batch operation
1. In fixed window mode, click the one-click selection on the left to control all mobile phones synchronously through the master control, or click the number to select some mobile phones for synchronous control.
After clicking, the number and window background will change color
Second, click the group control button on the right side in the floating main control window mode, and the effect of one-click selection is the same.

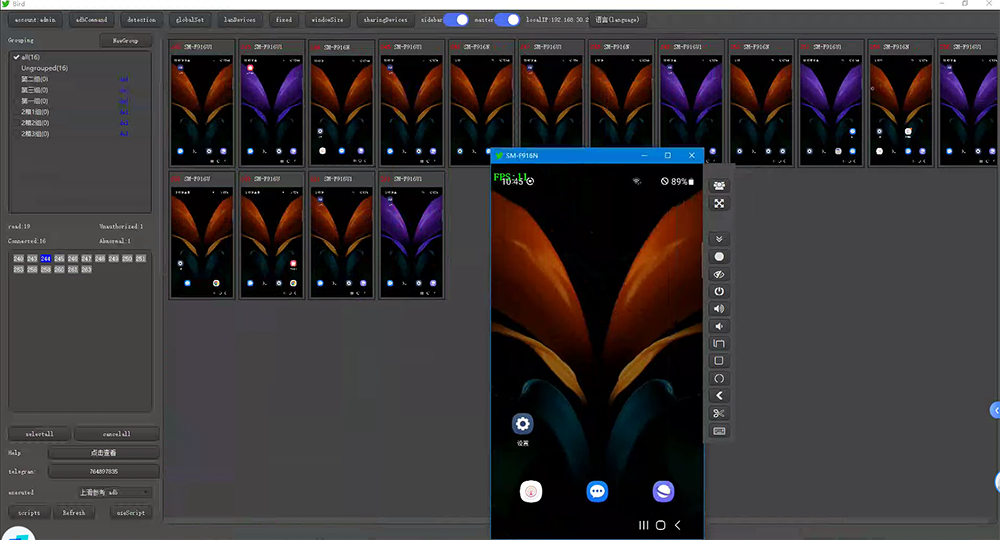

Switch between floating and fixed main control window
The default mode is fixed window. To change it to floating window, find the floating window button at the top and click it.
Two modes of display
Modify the device number
Right-click the device title to modify the device number.
The number cannot be an existing number, it must be a new number
Modify device notes
Depending on your needs, you may need to assign a name to your phone. You can right-click the window title to modify the phone's note name.
Cannot add symbols
Group control
If it is not convenient to control too many mobile phones, you can use the grouping function to quickly select the required mobile phone. After selecting a group, the other grouped mobile phones will be deselected and displayed.
Keyboard special language input and paste input
Select the phone that needs keyboard input, select one or more, right-click the number, and after the ADB keyboard is installed, set it as the default startup
After starting up, a prompt for the ADB input method will appear at the bottom of the phone when inputting text.
Then enter the content in the fixed window and click Send to your phone. To paste, just paste it into the input box and click Send.
Click the keyboard in the lower right corner of the floating window, an input box will appear, enter or paste, and click Send.
ADB command control
Click the ADB command at the top of the software to enter the adb command window. You can click the added command to execute it quickly, or you can manually enter uncommon commands to execute them separately.
Shortcuts: Click the Add button in the ADB execution box to add a button, saving the tedious operation of entering it every time
ADB script control
Click the Manage Script button to open the ADB script window to write and control the execution of ADB commands.
Batch file transfer
Select the phone you want to transfer, right-click the number, click Batch Transfer, select the files you want to transfer, you can select multiple files, confirm that they are correct and click Start Uploading
By default, the files are transferred to the root directory of the phone. You can customize other paths and upload them to the specified location.
Transfer pictures to album
Select the phone you want to transfer, right-click the number, click Batch Transfer Pictures, select the pictures you want to transfer. You can select multiple pictures and quickly transfer them to the phone's picture album directory.
After the picture transfer is completed, if the album does not display, it is partly due to the mobile phone album detection problem. You can restart the phone to solve it.
APK batch installation
Select the phone you want to transfer to, right-click the number, click Batch Install, select the APK you want to install, you can select multiple APKs, click Install
If the apk installation fails, you need to check whether the apk is abnormal. You can transfer an apk file to the root directory of the mobile phone, click to install in the phone and check the phone's reminder!
Modify mobile phone number wallpaper
Right-click the window title and select Set Wallpaper to open the wallpaper settings window.
After opening the wallpaper settings page, you can upload any background image and enter text to generate the wallpaper. If the phone prompts you to install the apk during the generation, please agree.
USB power supply
Currently, it is only supported on some models. Please try it yourself. If it doesn’t work, just give up.
First install the USB network supply, and then perform a single network supply test or multiple network supply tests as needed.
Shared Devices
Currently, the shared device can be shared with friends, family or colleagues in the same local area network and they can control the phone together. Just let the other party open the Birdzun Cloud Control software to view the other party's local area network IP for targeted sharing. Click to share and the shared device screen will appear.
Currently, the other party of the shared device cannot transfer files through the computer
