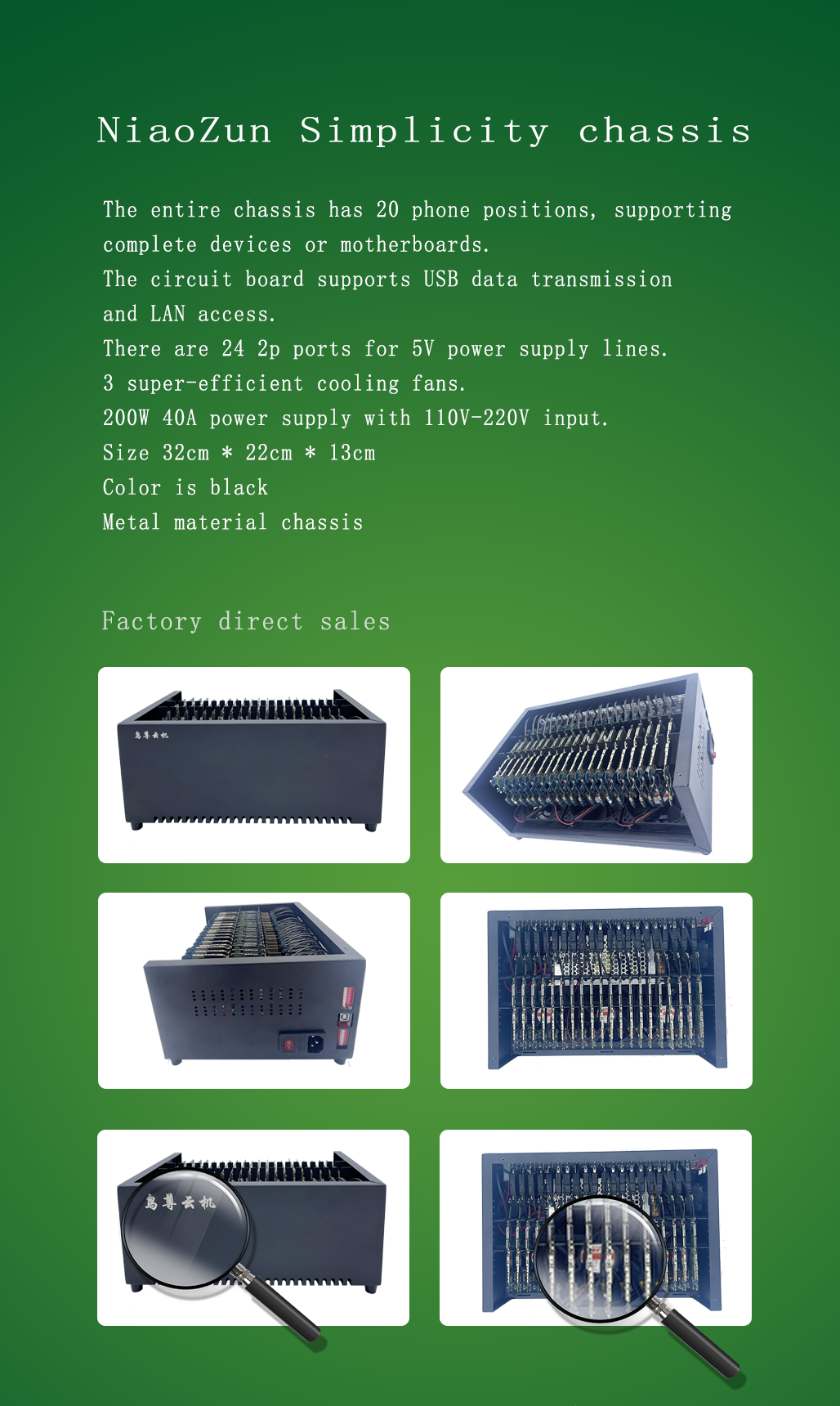

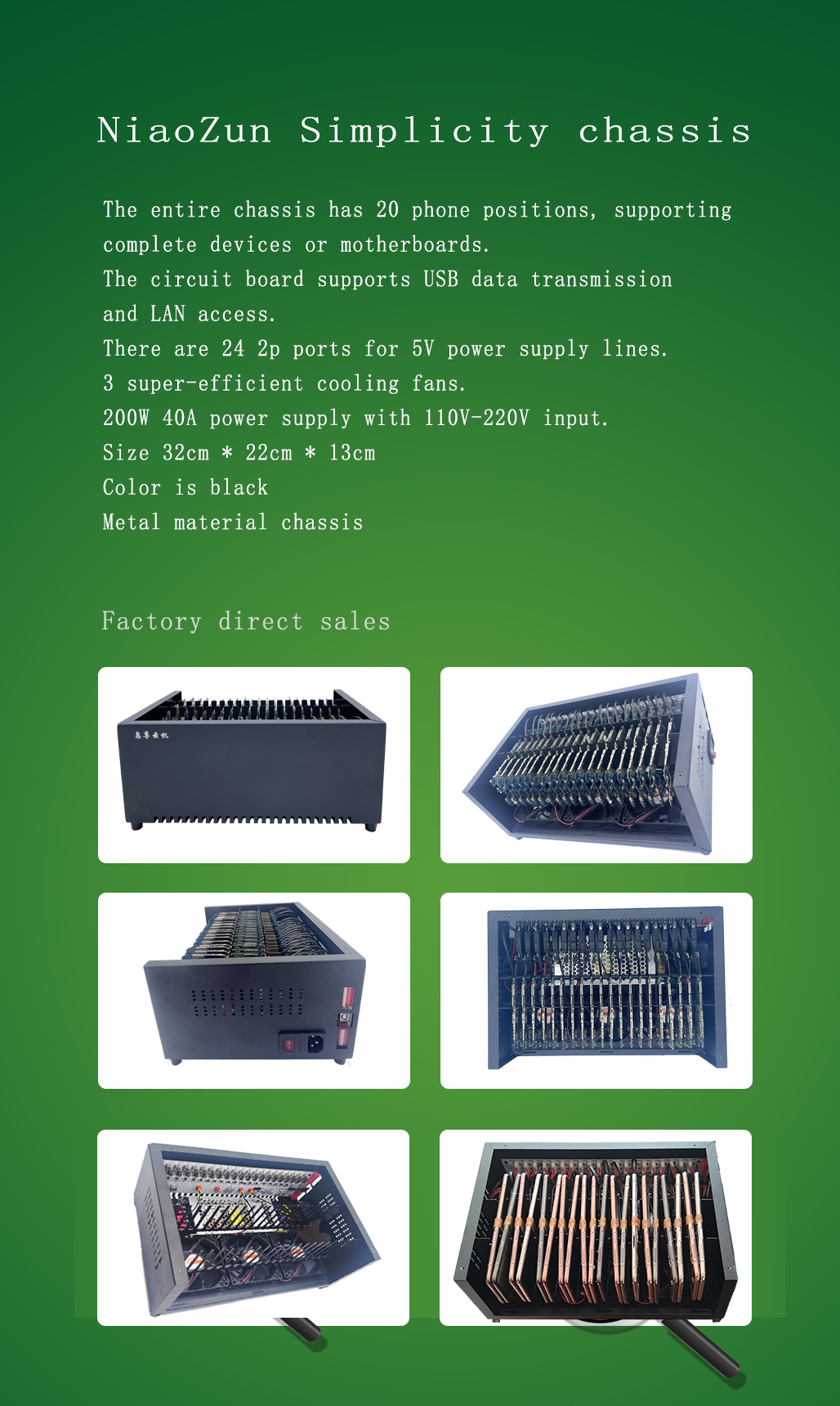

The Mobile Farm Chassis Box is designed for both hobbyists and professionals in the field of Android server and software development or testing.
It is a versatile, energy-efficient, space-saving solution that enables users to take full advantage of mobile computing capabilities.
One box can be equipped with 20 mobile phones or motherboards, and the connected mobile phones can be used with or without batteries.
USB box is suitable for mobile phones with official ROM
USB is to connect the box to the computer via a USB cable, and the mobile phone can connect to the Internet via WIFI or SIM card.
OTG box is suitable for custom ROM mobile phones (custom ROM starts automatically to open TCPIP protocol)
OTG needs to be connected to the same router as the computer via an Ethernet cable, using Ethernet to access the Internet and cast the screen over the LAN.
The USB+OTG box is suitable for all ROM mobile phones and can switch between USB connection to computer and OTG connection to computer at will.
Can switch SIM Internet access/WiFi Internet access/Ethernet Internet access at will
You can also enable the official system through the computer to open the TCPIP LAN projection protocol
Included List:
Box power cord*1
Box USB cable*1
Mobile phone battery cable*20
Mobile phone data cable*20
Complete chassis box*1
*Mobile phone not included
Mobile phone battery cable, by default supports Samsung S6-S7-S8-S9-S10-Note5-Note8-Note9-J3-J5-J7 series. If you need to adapt to other series of mobile phones, please contact customer service.
notes:
1. All the above mobile phone usage conditions require turning on the mobile phone USB debugging and authorizing the computer before use
2. The use of this product requires certain technical experience. Please evaluate it yourself before purchasing.
We can guide you in how to use it, just contact customer service.
This product does not support refunds. We refuse returns or refunds. Thank you for your understanding.
Simple Box | |
Integrated functions | USB / OTG /USB+OTG |
Integration quantity | 20 aircraft positions |

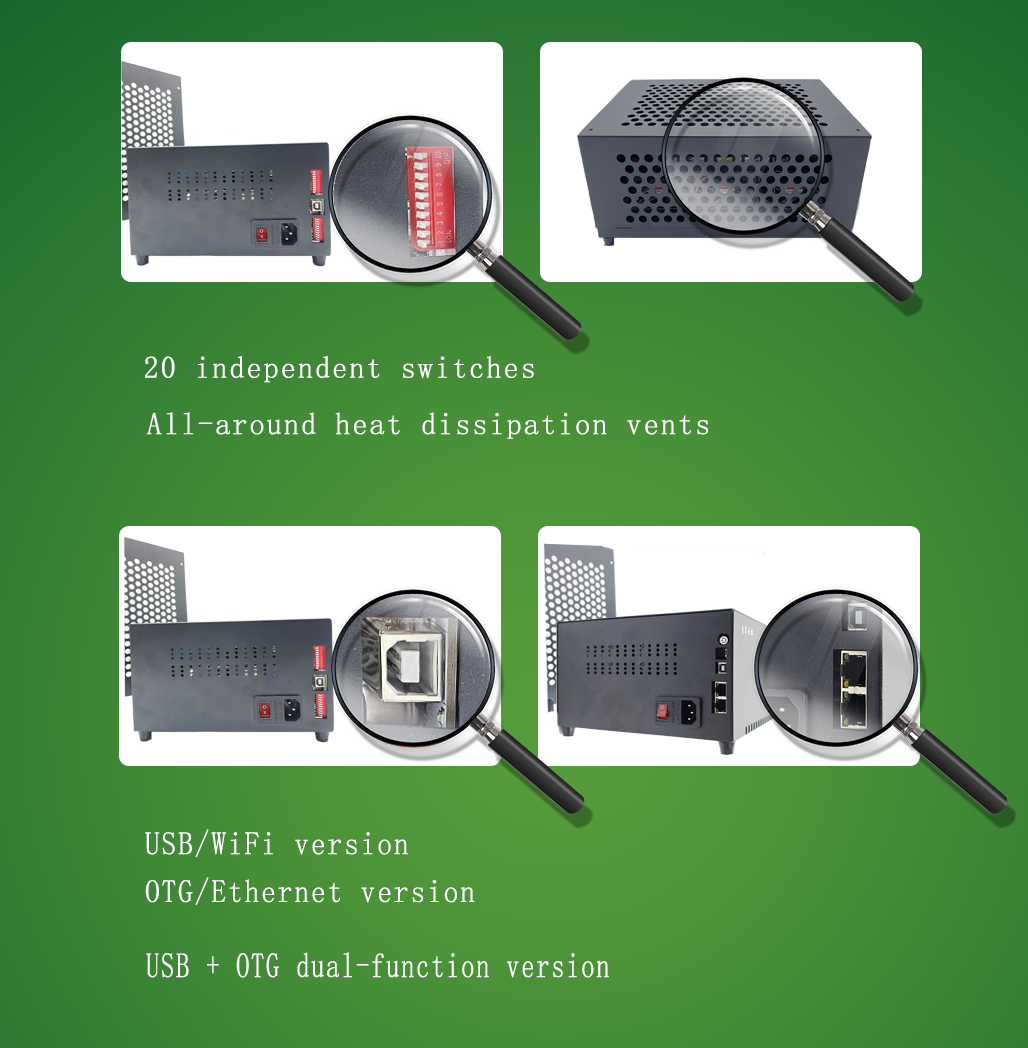

20 independent physical switches | USB/OTG有 USB+OTG(no) |
Network port connection (Within 5 times) | USB/OTG Version available |
Fixed mode | Integrated bracket |
Cooling mode | Three fans |
110V-220V Connect 5V output Power Supply | 200W manual Adjust power supply |
Chassis size | 32cm * 22 cm * 13cm |
Outer packaging size | 39cm*26cm*22cm |
Shell material | Metal |
function | 365/24 |
